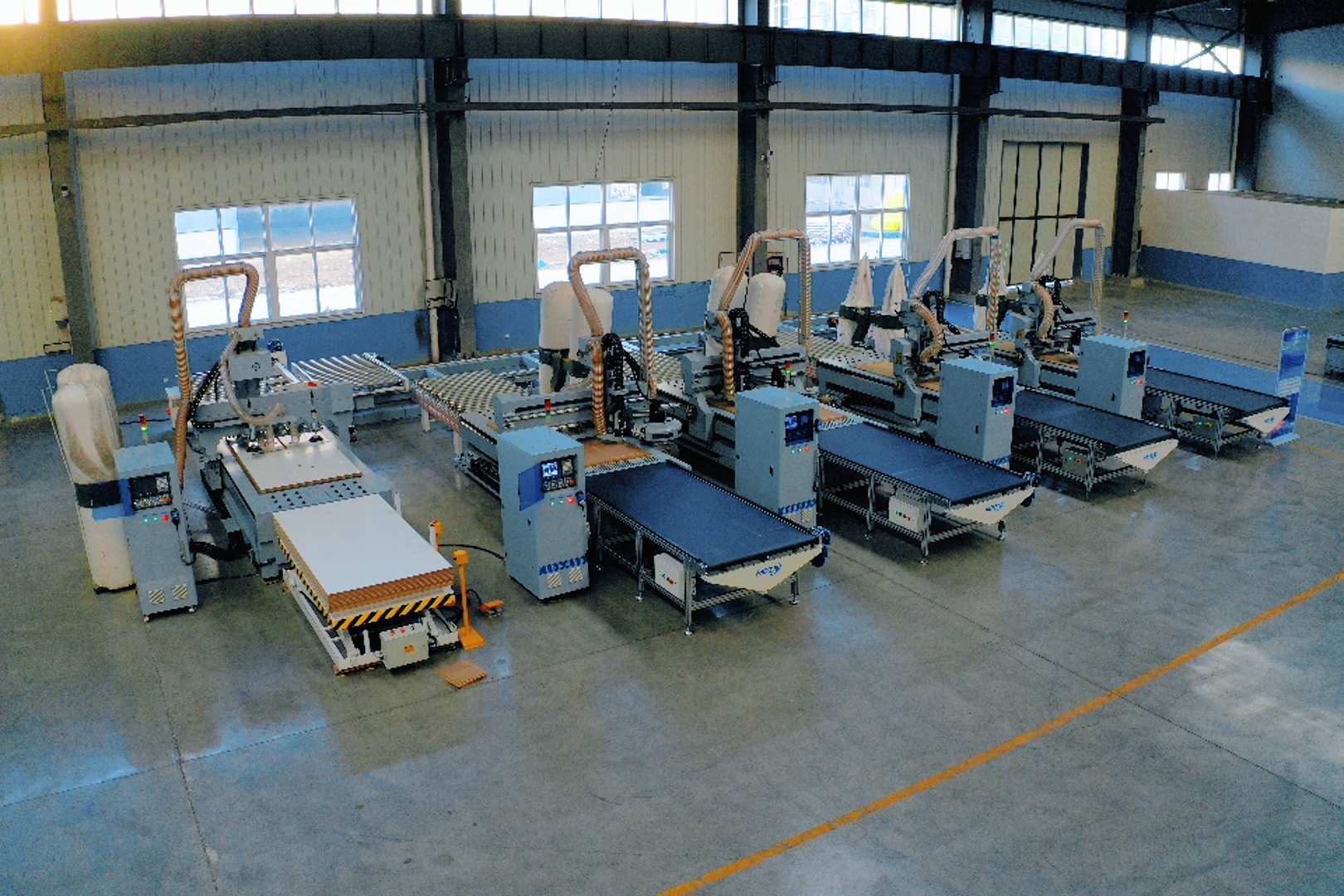

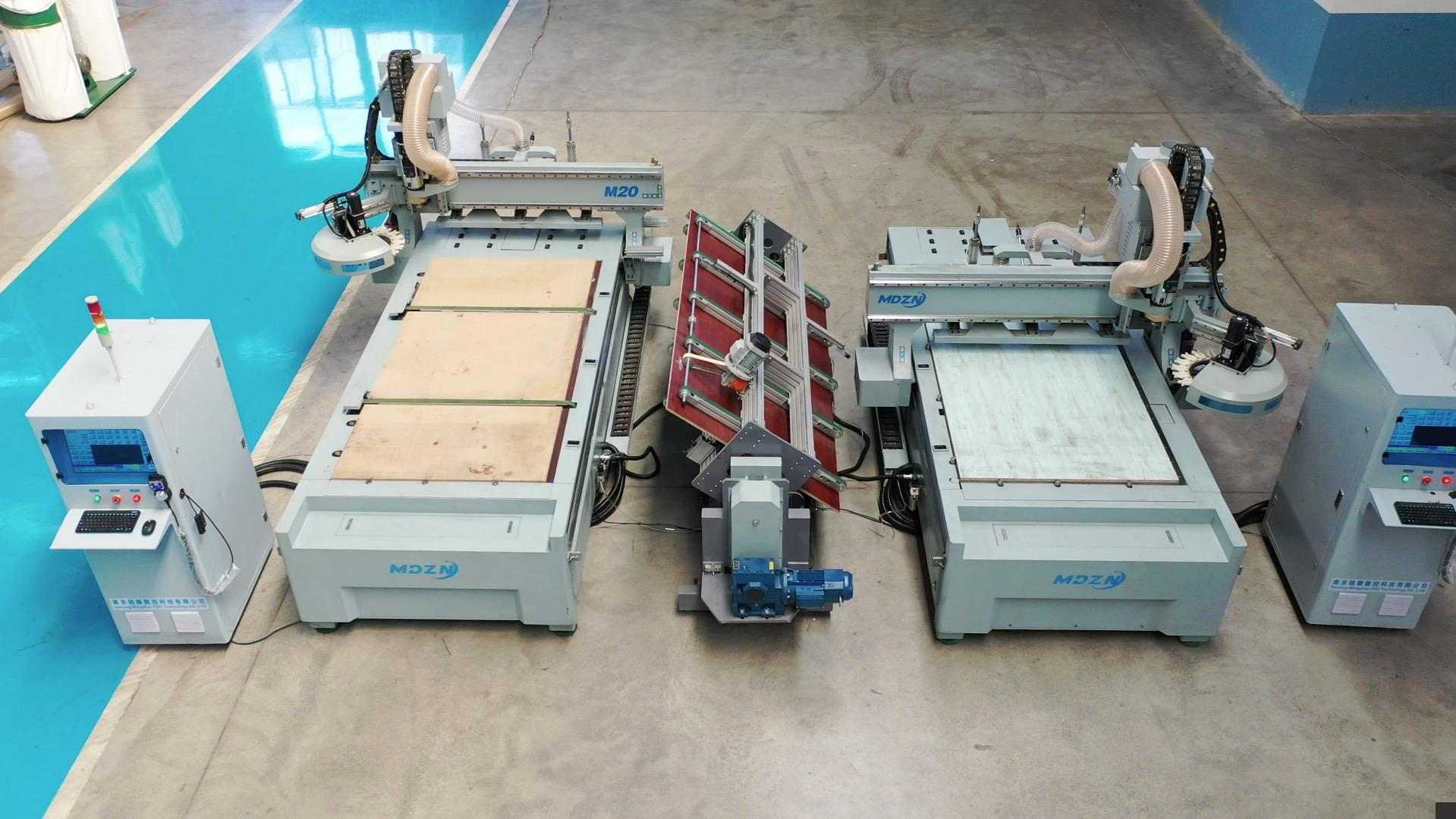

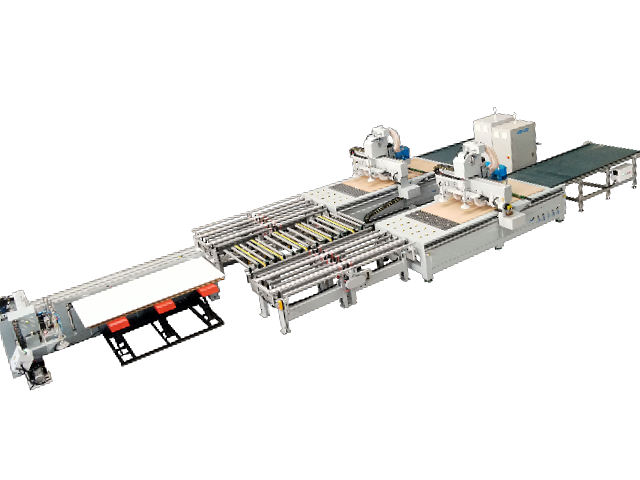

M20 CNC router+Sheet metal front and back processing line

This production line can perform processing such as hinge hole drilling, grooving, and sculpting on the back of door panels. The overall process is as follows: feeding material to the hydraulic platform -- automatic feeding to the processing machine -- drilling hinge holes, punching holes, straightener grooves, and processing the back of the glass door -- transferring to the flipping machine to flip the door -- transferring back to the door-shaped processing center -- processing and cutting the door shape on the front -- pushing the finished product to the discharge platform while simultaneously feeding material -- manually affixing labels and collecting the material.

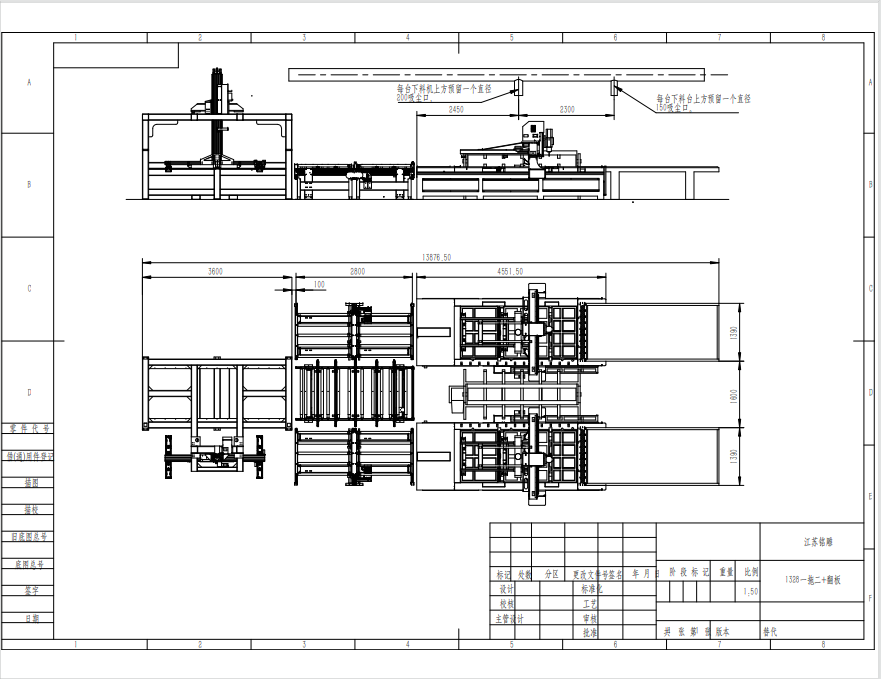

M12 gantry frame feeding 1-to-2 furniture production line

The gantry-mounted, two-to-one CNC engraving machine is an automated system employing a gantry structure, capable of simultaneously handling material handling and loading/unloading for two CNC machine tools.

The overall production line flow is as follows: Gantry loading – Labeling machine – Labeling – Automatic allocation to processing machines by the cabinet-based intelligent distribution system – Machine preparation – Cutting – Processing completed and pushed to the unloading platform – Robotic arm retrieval.

The gantry structure itself possesses high rigidity and stability. Combined with a servo control system, the equipment operates smoothly with a low failure rate, meeting the production needs of enterprises for long-term continuous operation. Utilizing servo motor drive and linear guides, it boasts high operating speed and high positioning accuracy (repeatability up to ±0.5mm to ±1mm), significantly reducing machine tool waiting time.

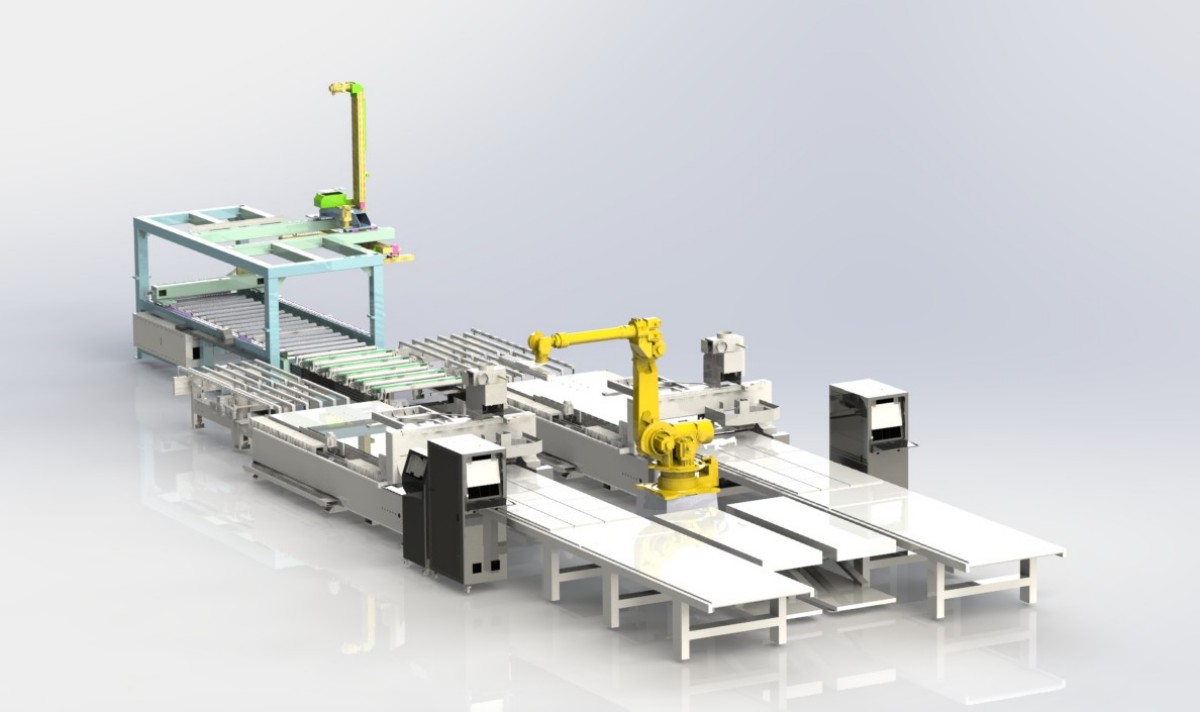

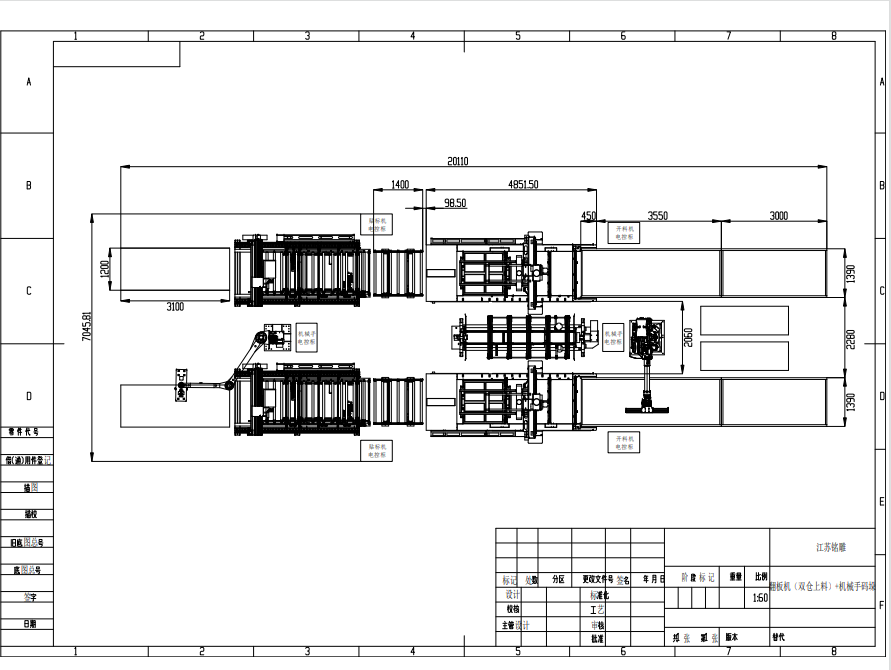

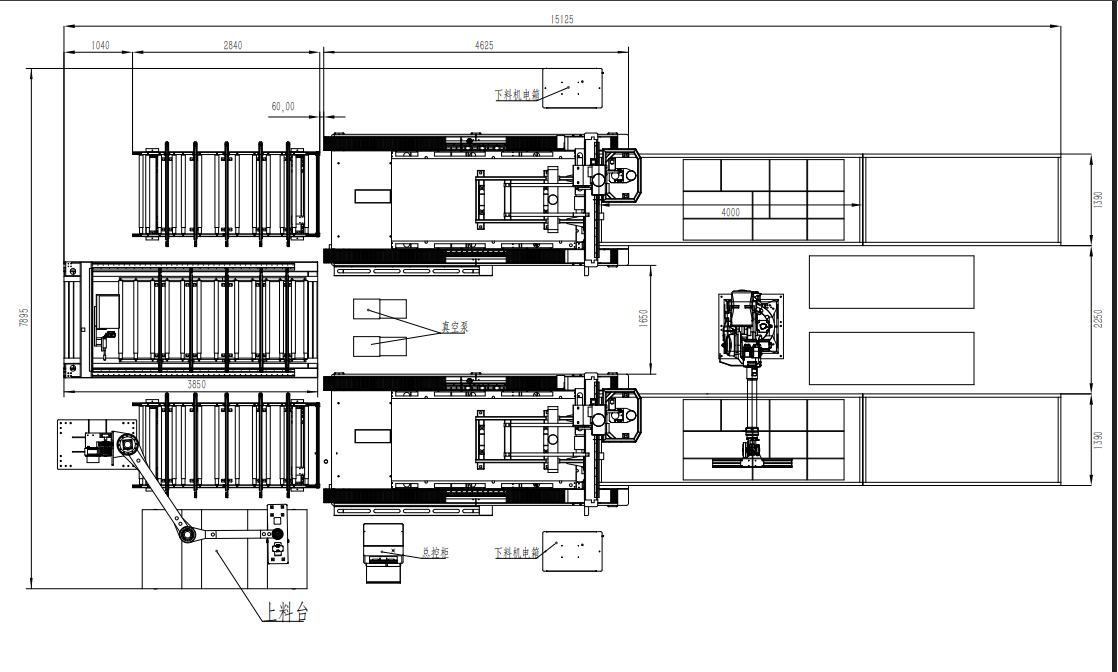

MD-8AL gantry frame feeding 1-to-2 furniture production line+robotic palletizing

The overall process of the production line is as follows: Gantry loading --- Labeling machine --- Labeling --- Automatic allocation to left and right waiting tables by the cabinet-type intelligent distribution system --- Machine loading --- Machine assembly --- Cutting --- Processed and pushed to the discharge platform --- Palletizing by robotic arm

The entire process, from raw material loading to finished product palletizing, requires no manual intervention, only a small number of personnel for monitoring and assistance, significantly saving labor costs and solving the problem of labor shortages.

One-to-two machining center: One gantry-based loading system serves two CNC engraving machines simultaneously. While one machine is processing, the gantry is already loading the other, greatly reducing machine waiting time.

Website data operation system

developed based on Google API big data integrates all website data (listing, weight, ranking, traffic, inquiry), so that each website has its own keyword database and weekly keyword monitoring system

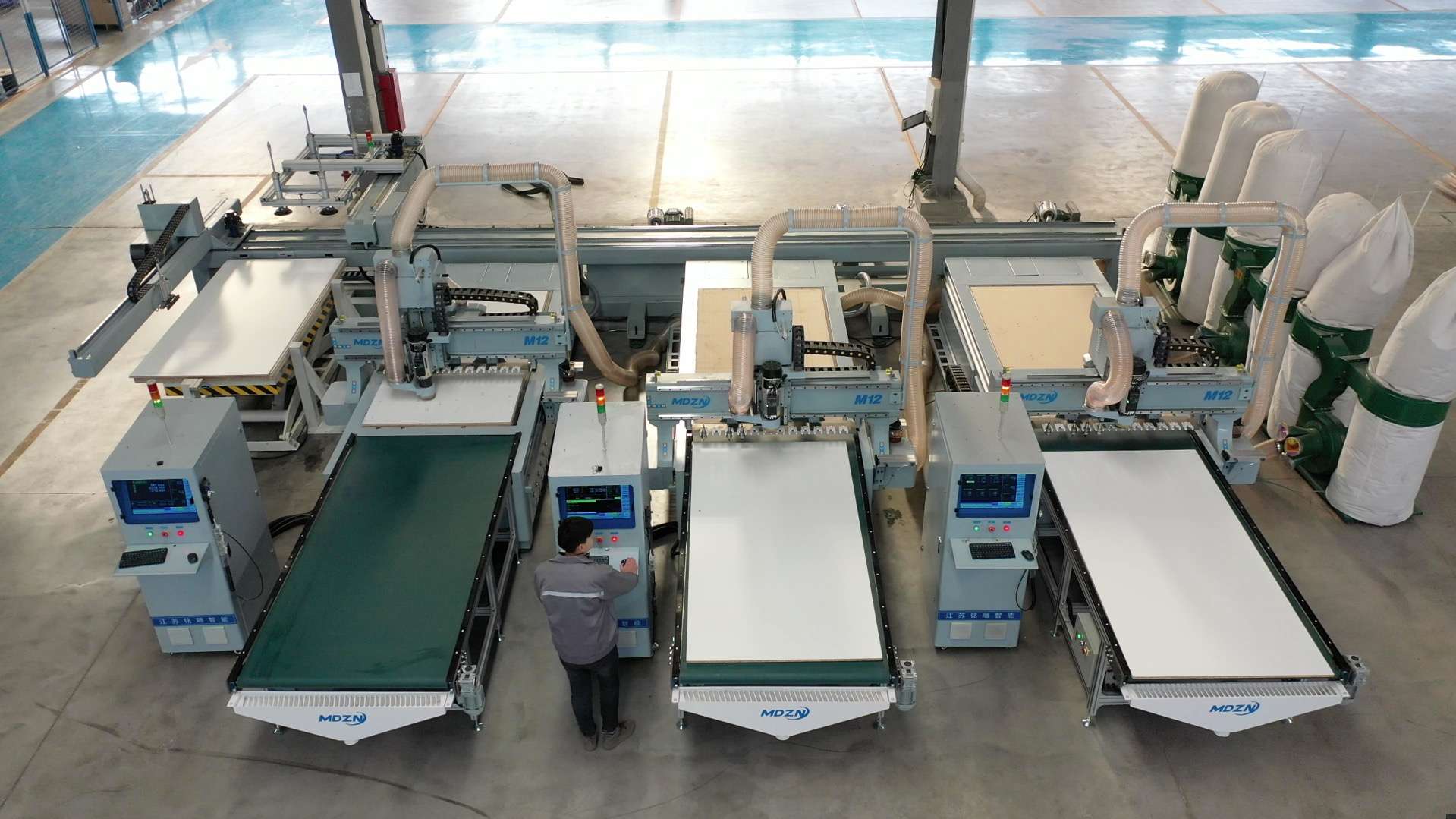

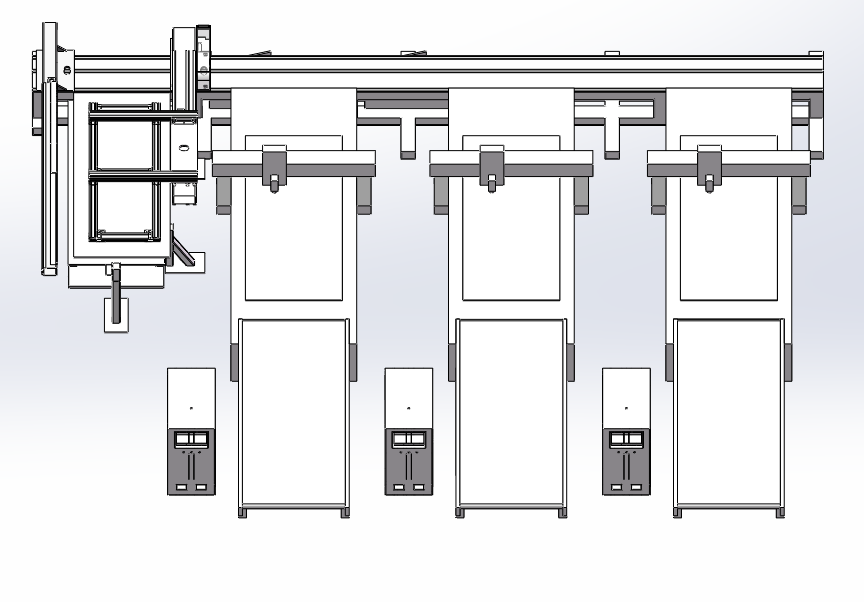

M12 Intelligent Connector for Cutting Three Furniture Cabinets

The overall process is as follows: material is loaded onto the hydraulic platform—labeling is applied—the intelligent distribution system automatically allocates the material to the processing machine—the machine processes the material—it is cut—after processing, the material is pushed to the unloading platform to await allocation by the intelligent distribution system, achieving continuous and uninterrupted processing of the sheet material.

The entire production line is fully automated, requiring only one operator to handle loading and overall monitoring, completely replacing the 2-3 sorting and handling workers required in the traditional model. This not only significantly saves labor costs but also frees workers from high-intensity, repetitive physical labor, reducing occupational health risks and management difficulties.

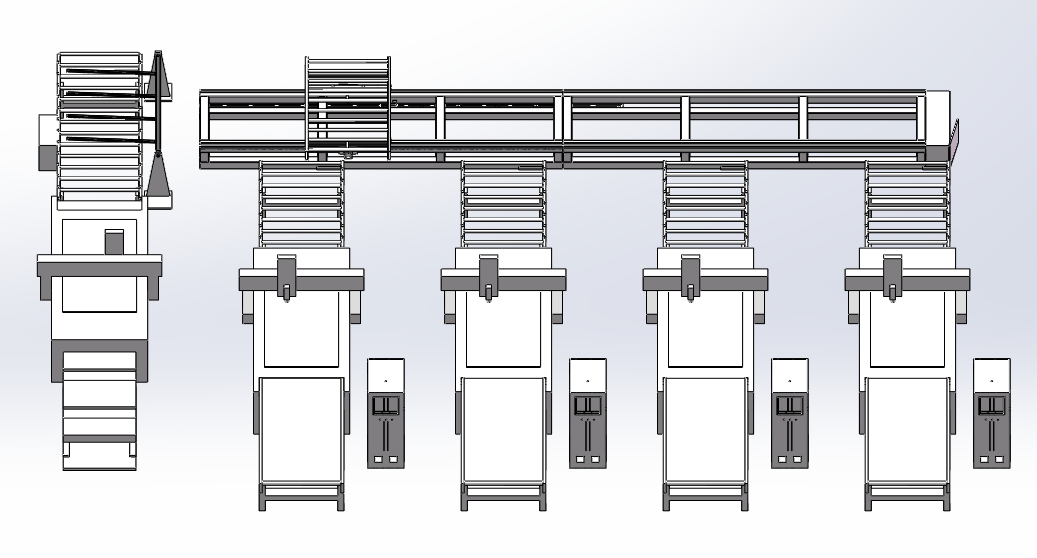

M20 One-to-Four Molded Door Panel Smart Connection

The production line is less prone to errors and requires minimal human intervention. Through precise allocation of processing tasks by a central controller, it ensures uniform and standardized processing details such as shape and hole positions on both sides of the door panel, stabilizing product quality.

The overall process is as follows: Material is fed to the hydraulic platform – automatically fed to the reverse processing machine – laser marking – drilling hinge holes, perforations, straightener grooves, and processing the back of the glass door – transferred to the flipping machine – automatically transferred by the Mingdiao intelligent trolley to the door shape processing center – door shape processing and cutting – finished product pushed to the unloading platform and simultaneously loaded.

The entire process is automated, requiring no human intervention, offering higher precision and efficiency, with a daily output of 250-500 square meters. (The specific design depends on the complexity of the door panel design)
