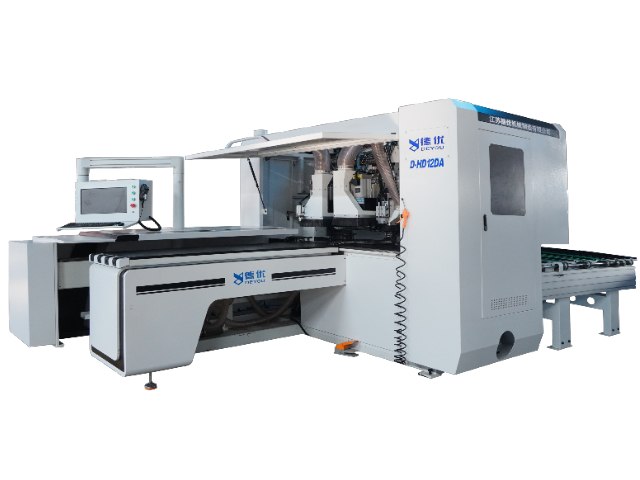

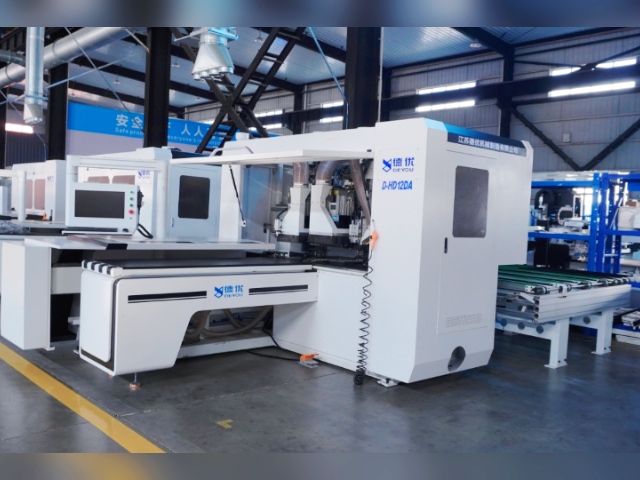

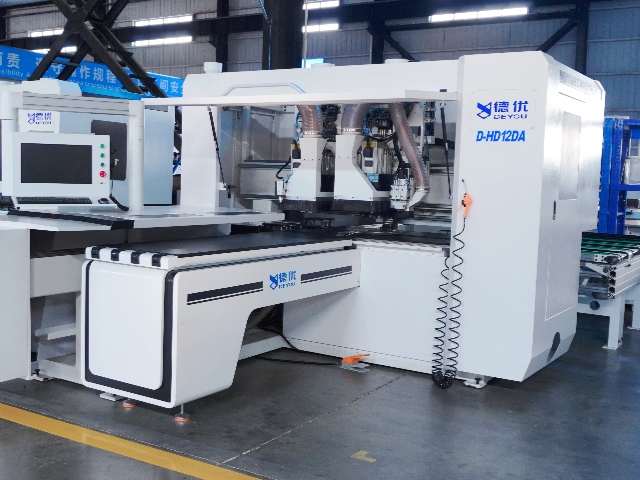

4000KGThe HD12DA CNC Six-Sided Drill With Automatic Tool Changer features the following:
1. The system identifies processing information via barcode scanning, ensuring intelligent and efficient operation.
2. Computer operation, CAD drawing, CAM import; direct import of open data formats such as DXF, MPR, and XML, offering convenient operation.

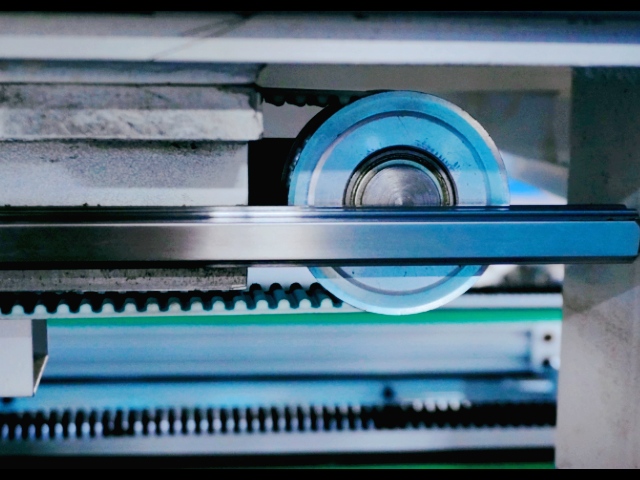

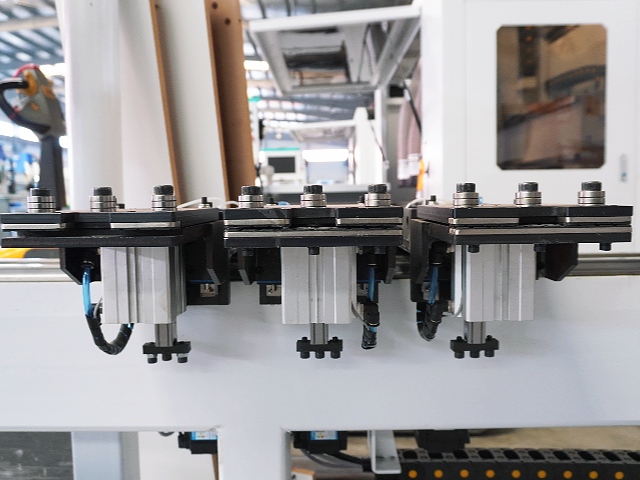

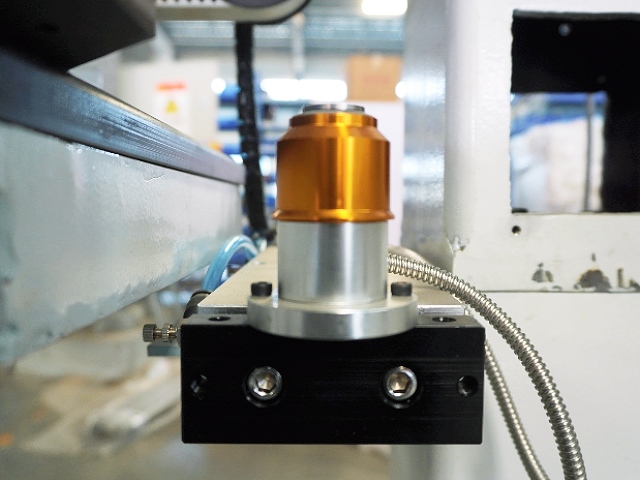

3. Utilizing a double-gripper long guide rail, the system achieves a maximum gripping speed of 130m/min. Intelligent hole position detection effectively avoids drilling locations, reducing hand-change time during drilling. The gripper stroke exceeds 4.5 meters, allowing for one-time gripping and processing of large panels, significantly shortening drilling time for large wardrobe side panels.

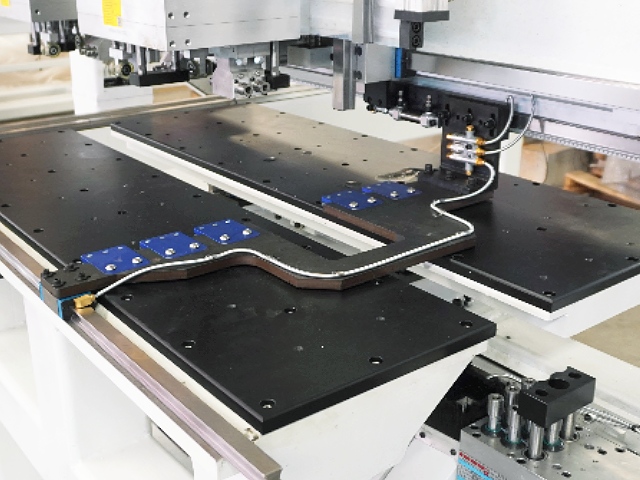

4. Equipped with an air-floating worktable and air-floating pressure plate, an air layer forms on the upper and lower surfaces of the panel during processing, improving panel conveying efficiency and preventing scratches. Drilling is completed simultaneously with the pressure plate, ensuring drilling accuracy and efficiency. The unique installation position of the air-assisted drill bag prevents panel floating during drilling, avoiding edge chipping and deviations in hole positions; and effectively prevents dust accumulation in the drill bag, which can cause drill bit jamming and affect production.
5. Processing modes can be selected based on production output and manufacturing process. The forward-to-backward mode allows for immediate processing of the next board after the previous one is finished, resulting in a smooth process with short downtime. This forward-to-backward mode enables continuous production, achieving drilling capabilities comparable to imported dual-station PTP drilling centers. The forward-to-forward mode is primarily designed for situations involving numerous double-sided vertical drilling operations.
Technical parameter
| Vertical Drill | Top: 10 pieces * 2 Bottom: 7 pieces + bottom tray |
| Horizontal drill | X direction: 2 pieces * 2 Y direction: 2 pieces * 2 |
| Drilling speed | 5000rpm |
| Spindle power | Lower spindle: 9.0kw*1 |
| Gas consumption | 120L/min |
| Processing dimensions | 5160 x 2850 x 2250 mm |
| Total power | 26.8 kW |
| working air pressure | 0.6 MPa |
| Board width | 30-1220mm |
| Board length | 200-3000mm |
| Plate thickness | 10-60mm |
| Voltage | 380V/50HZ |
| gross weight | 4000KG |
detail pictures
The HD12DAD CNC Six-Sided Drill With Dual Workstation utilizes a dual-station parallel processing system, doubling efficiency: the machine has two independently operating worktables, enabling "small boards to be processed separately, while large boards are processed together." This means that two boards with different processes can be processed simultaneously, or the processing task of a large board can be split between two workstations to complete collaboratively, increasing overall processing efficiency by more than 30%.
Details

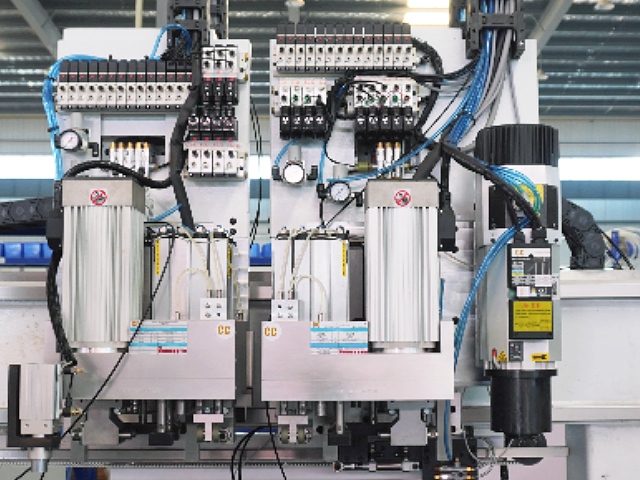

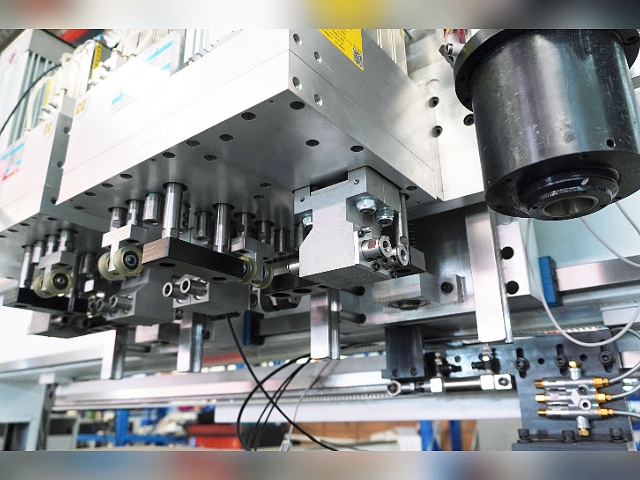

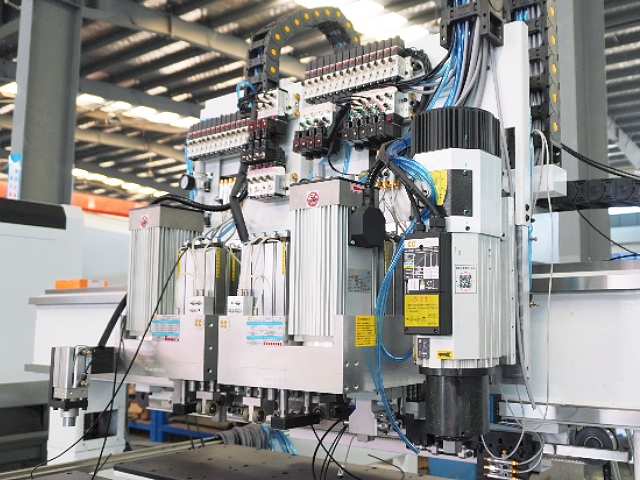

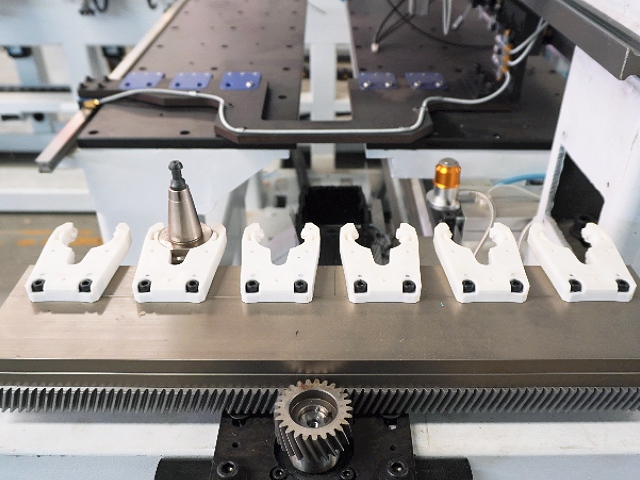

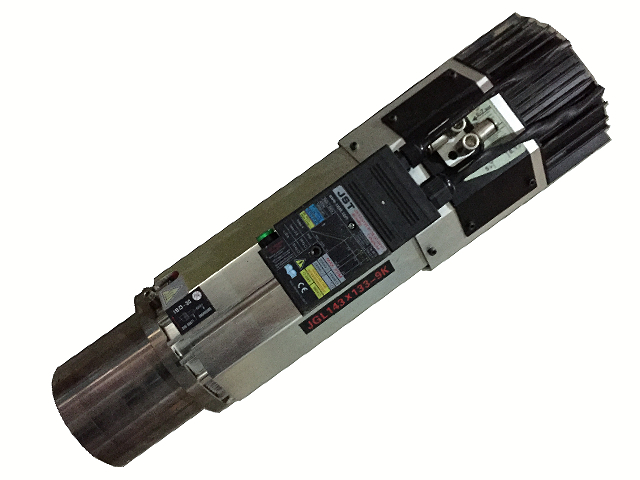

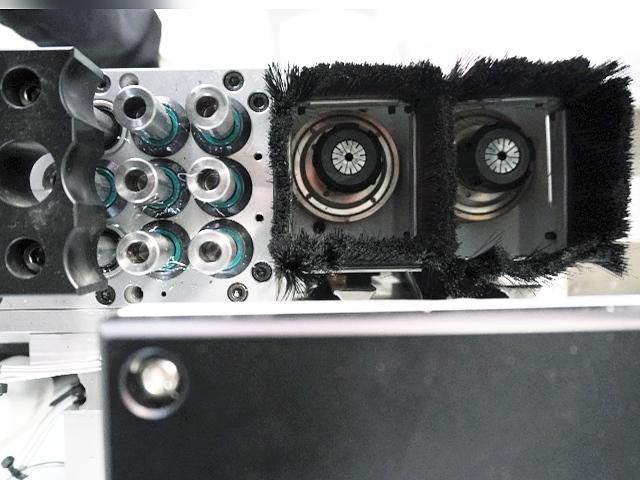

The HD12DA CNC Six-Sided Drill With Automatic Tool Changer features two top-mounted drill packs and a 9kW tool changer spindle, equipped with a six-tool magazine in a straight line. It also includes a bottom-mounted drill pack, allowing simultaneous use of two low-power spindles. This enables drilling and milling of all sides and top/bottom surfaces of a workpiece in a single setup. The HD12DA CNC Six-Sided Drill With Automatic Tool Changer's six-tool magazine and independent milling spindle can operate synchronously or sequentially, completing complex hole and slot designs in a single operation.
Details
The HD12D CNC Six-Sided Drill With Double Diamond Bag achieves the efficiency of a dual-station PTP machining center. It can be operated by a single worker with a low workload and can directly interface with various order splitting software. It is primarily used for vertical and horizontal drilling (hinge holes, through holes, semi-through holes, etc.) on various types of engineered wood panels, eliminating the need for plate flipping and completing six-sided drilling in one pass. When used with a small spindle, it can also perform grooving, shaping, and other machining operations.
Details
The HD12 CNC Six-Sided Drill uses six drill bits, one at the top and one at the bottom. Utilizing an advanced CNC system and mechanical positioning, the upper drill bit is responsible for drilling vertical holes and grooves on the upper surface of the metal sheet, while the lower drill bit is responsible for the corresponding machining on the lower surface. Simultaneously, the horizontal drill arms on both sides (integrated into the drill bit system) work together to precisely drill horizontal holes on all four sides. This means that machining of all holes in the metal sheet can be completed with just one clamping and positioning, truly achieving "one-stop" machining.
Details
