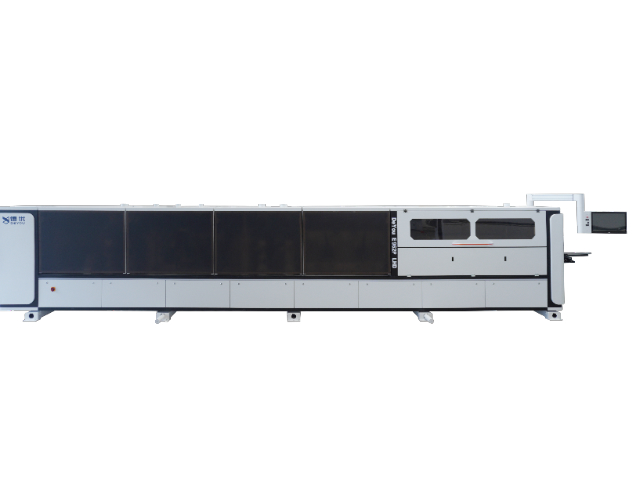

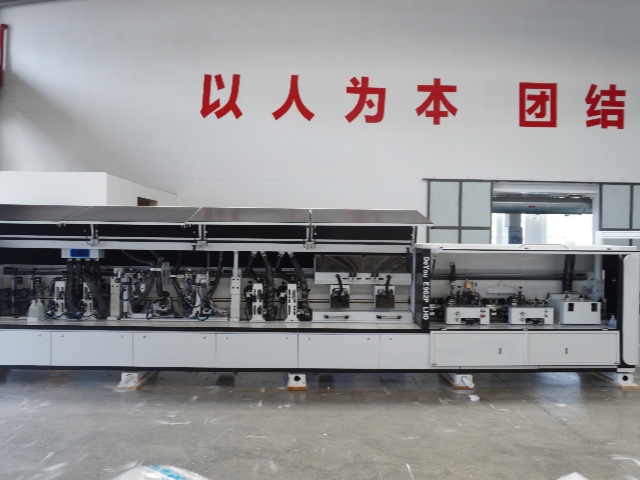

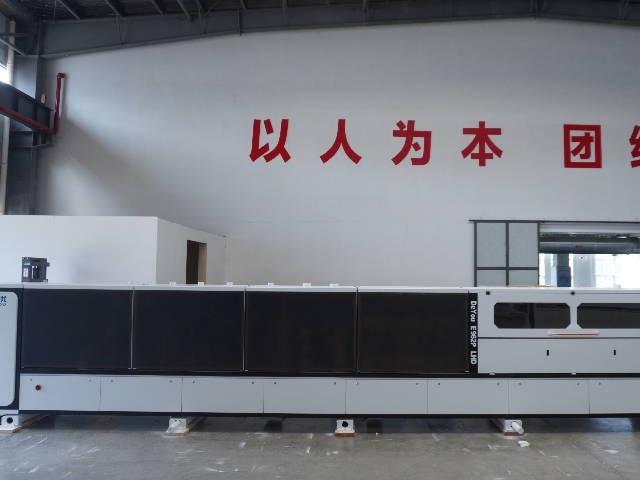

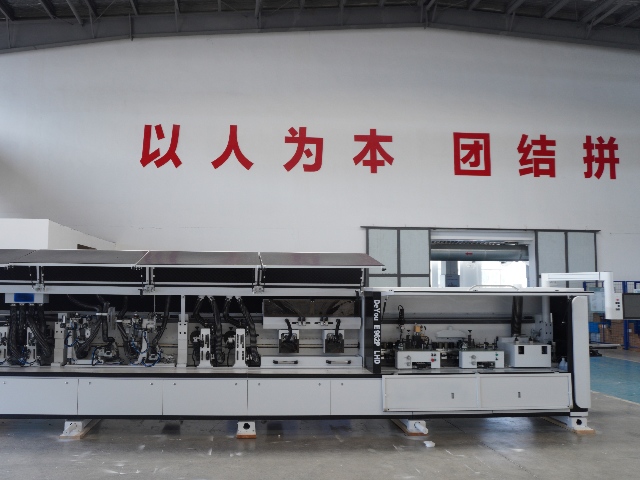

962P LHD Laser Edge Banding Machine With Horizontal Alignment Function
Item No :
962P LHDOrder(MOQ) :
1Product Origin :
Nanjing, Jiangsu Province, ChinaLead Time :
40thWeight :
6000KG962P LHD Laser Edge Banding Machine With Horizontal Alignment Function & Detailed introduction

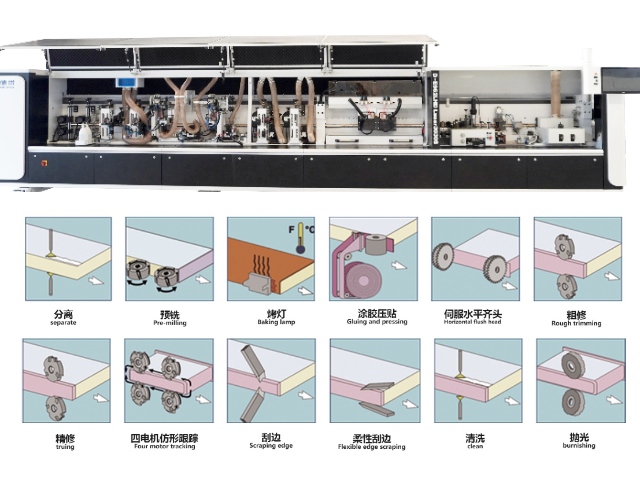

The workflow of the 962P LHD Laser Edge Banding Machine With Horizontal Alignment Function is as follows:
Applying a separating agent → The edge banding machine performs high-speed milling on the side of the board to be edge banded, removing dust → A conveyor transports the board to a preheating station, where it is uniformly heated to a suitable temperature → A high-power laser generator emits a beam of light, which is precisely focused onto the functional layer on the back of the edge banding tape through a lens assembly → Almost simultaneously, a heavy-duty precision pressure roller system presses the edge banding tape onto the edge of the board with enormous pressure. The molten functional layer fully penetrates and integrates with the wood fibers under pressure → The molten functional layer rapidly solidifies under natural cooling and assisted air cooling, forming a strong "riveting" mechanical connection with the board. The component undergoes a series of finishing units, including trimming, rough trimming, fine trimming, edge scraping, and polishing, removing excess material and refining the top, bottom, and end faces of the edge banding tape to make it seamlessly integrated with the board surface → Finally, a cleaning device is usually provided to remove processing residues.
The 962P LHD Laser Edge Banding Machine With Horizontal Alignment Function can use two different types of hot melt adhesive: EVA and PUR. This eliminates the need for frequent adhesive changes, increasing production flexibility. The dual-pot system allows for flexible selection of the appropriate adhesive based on factors such as the thickness and material of the edge banding strip, thereby improving edge banding quality. The dual-pot system also allows for precise control of the amount of each adhesive used, reducing adhesive waste and thus lowering production costs.

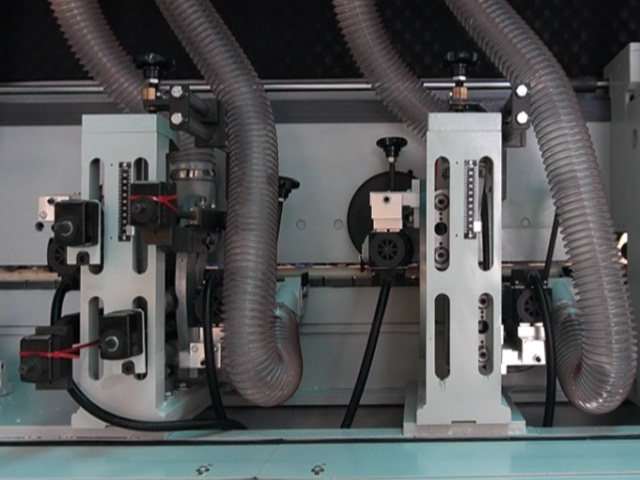

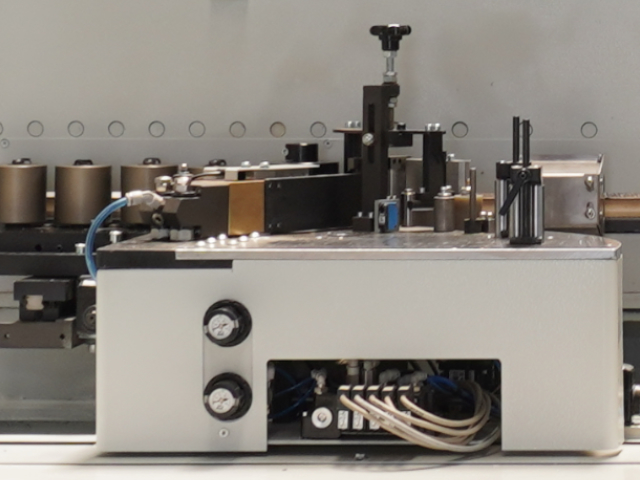

High-speed servo horizontal trimmer: Primarily responsible for neatly cutting both ends of the edge banding strip, ensuring it is flush with the edge of the board.
The high-precision control of the servo motor enables extremely high cutting accuracy. Its equipped encoder accurately monitors the motor's rotation angle and displacement, thereby precisely controlling the movement of the cutting blade.
The servo motor can precisely adjust the cutting blade's movement speed based on the material and thickness of the edge banding strip, as well as the operating speed of the edge banding machine.
Technical parameter
| feed rate | 18–28 meters per minute (depending on the material of the workpiece being processed) |
| Operating height | 950 mm (for reference only, subject to the actual machine) |
| working air pressure | 7bar |
| External dimensions | 9500cm long * 1100cm wide * 1745cm high |
| Equipment weight | 6000 kg |
| Workpiece overhang | 30 mm |
| workpiece thickness | 9–60 mm，If using a pre-milling device, 12–40 mm |
| When using tracking, the maximum edge banding thickness | 3 mm |
| power supply | AC 380V±10%/50Hz |
| Total power | 33KW |
| The largest diameter of the edge sealing roll | 830 mm |
detail pictures

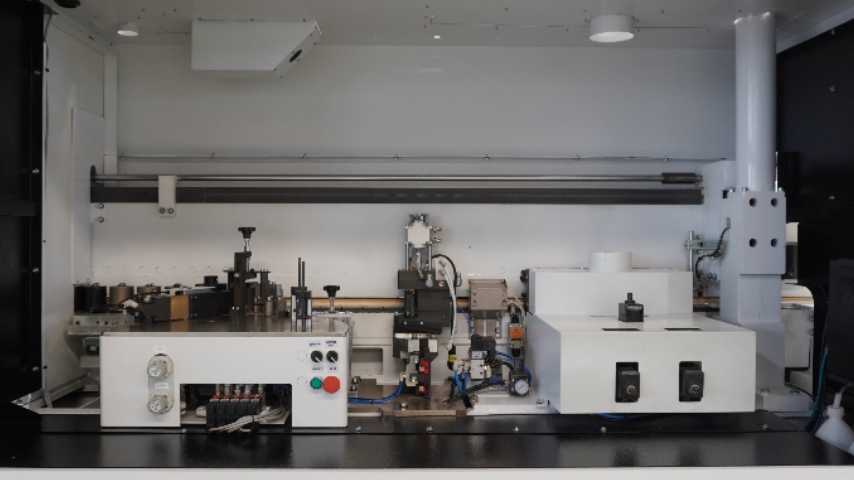

Rapid gel melting + double glue pot (EVA/PUR/laser optional)

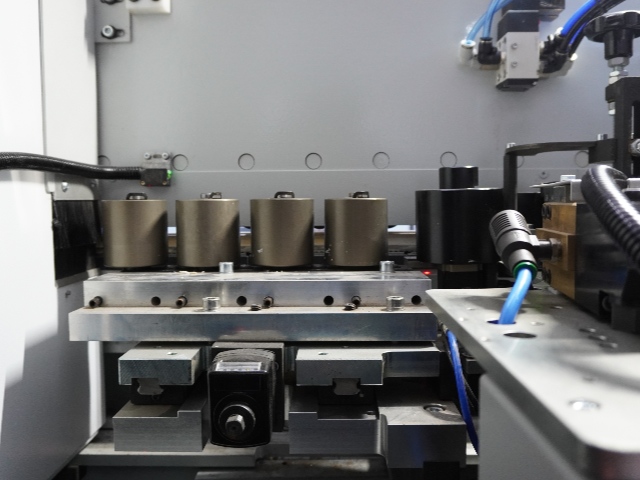

The 962P LHD Laser Edge Banding Machine With Horizontal Alignment Function uses a high-energy laser beam to instantly melt the special functional layer material on the edge banding tape, forming a strong mechanical bond with the board material, achieving a near-seamless edge banding effect. Compared to traditional edge banding techniques that use glue, this technology offers comprehensive advantages in terms of aesthetics, durability, efficiency, and environmental friendliness.
Details

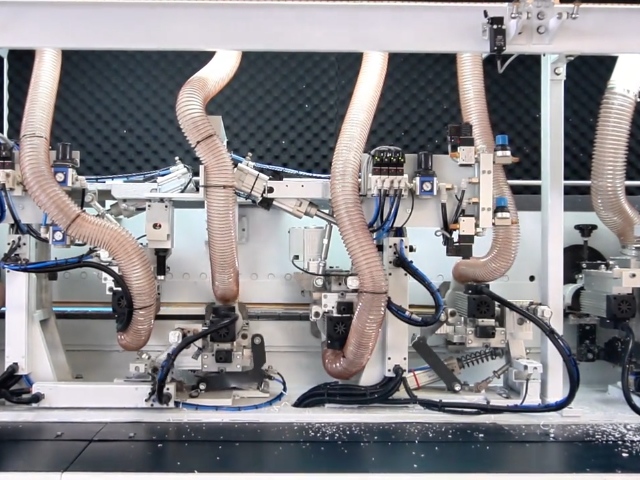

The 962LHD Laser Edge Banding Machine uses a high-energy laser beam to instantly melt the special functional layer material on the edge banding tape, forming a strong mechanical bond with the board material, achieving a near-seamless edge banding effect. Compared to traditional edge banding techniques that use glue, this technology offers comprehensive advantages in terms of aesthetics, durability, efficiency, and environmental friendliness.
Details

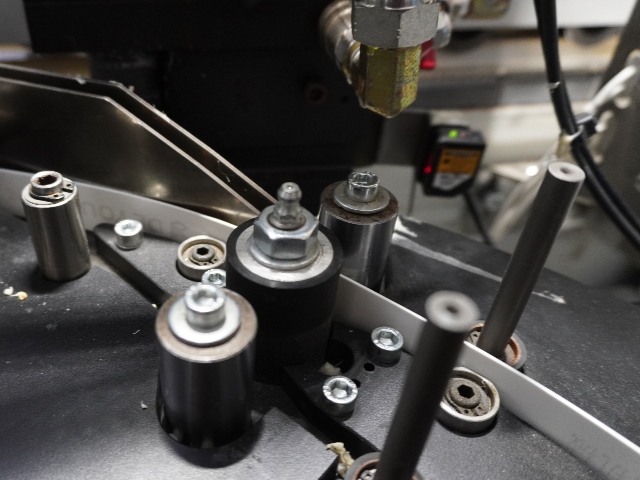

The E952LNH Narrow Board Edge Banding Machine With Horizontal Alignment Function removes excess edge banding material, ensuring a perfect fit between the edge banding tape and the board surface, without any protrusions or depressions. This horizontal alignment creates a clean, sharp right-angle joint, forming the basis for subsequent finishing and chamfering processes. Preparing for downstream processing: Ensuring the front end of the board is neat is crucial for a perfect connection with the back end. This is especially important in machines requiring edge scraping or contour tracking; precise alignment is the benchmark for subsequent processes.
Details

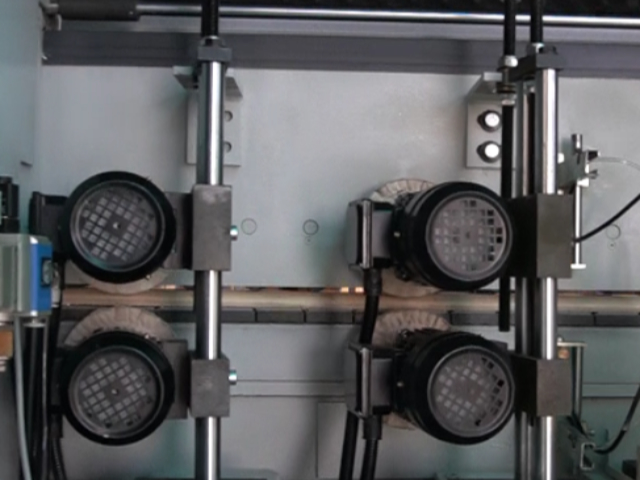

The E952LN Narrow Board Edge Banding Machine can process the following materials: particleboard, medium-density fiberboard, plywood, multi-layer solid wood board, solid wood board, and other boards (such as fireproof board, engineered wood veneer board, etc.). As long as the edges are straight and flat, they can be processed with the straight edge banding machine.
Details
