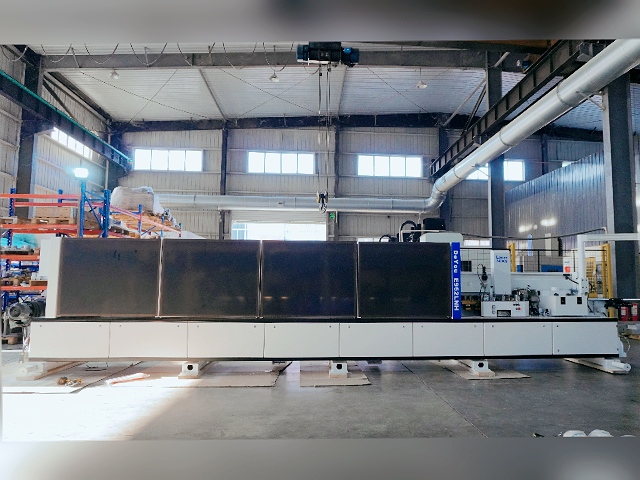

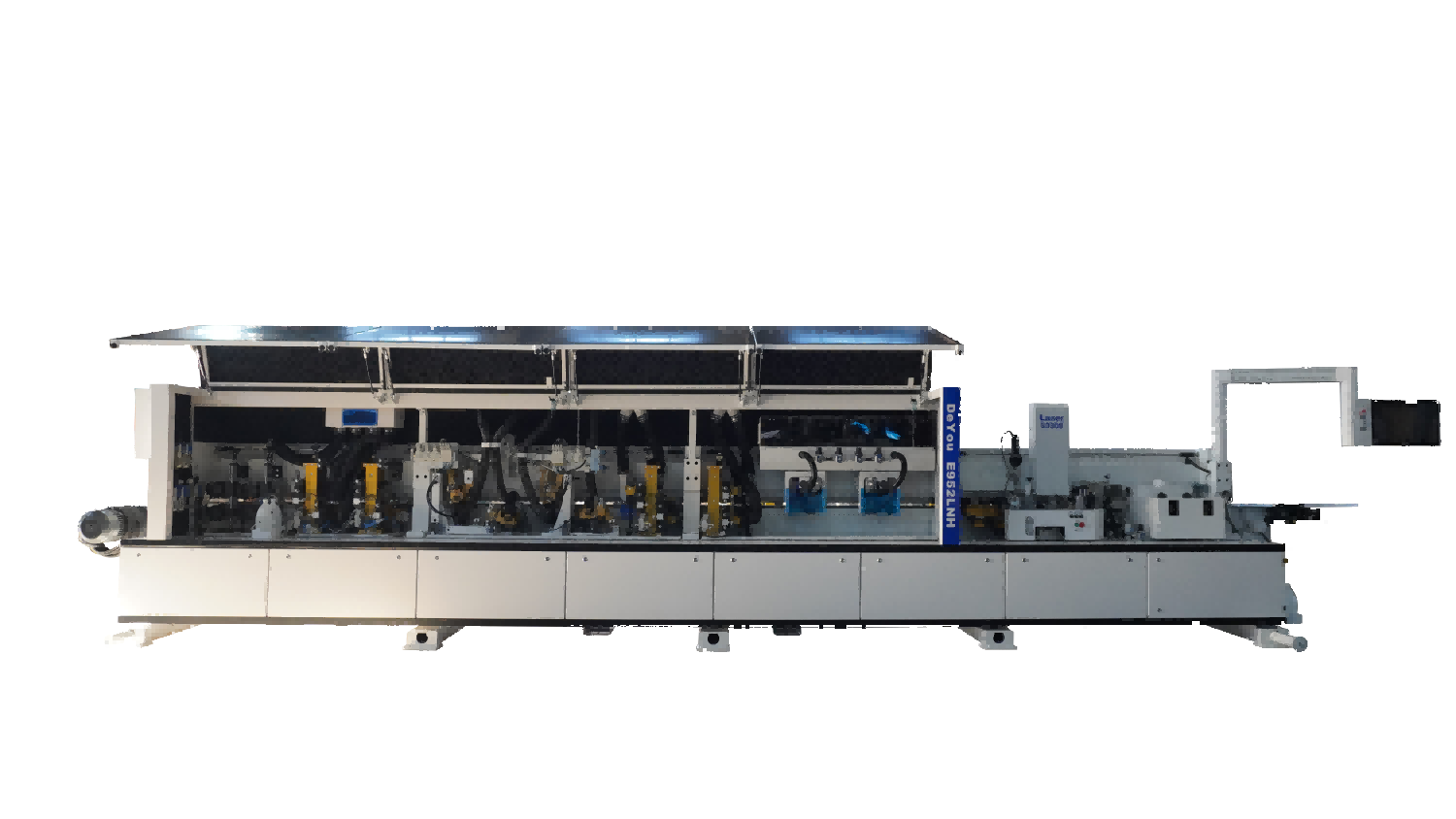

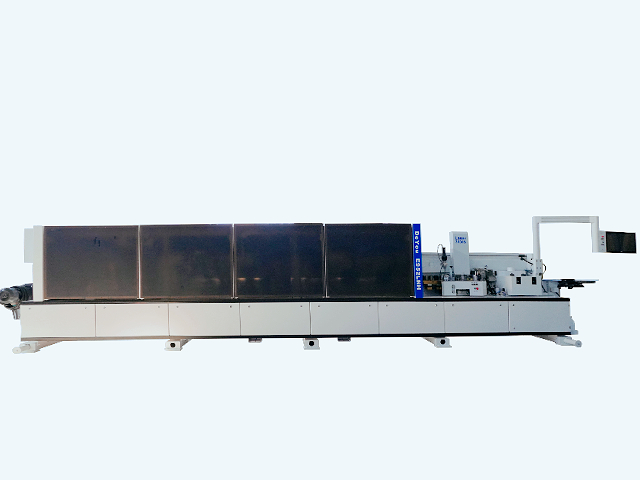

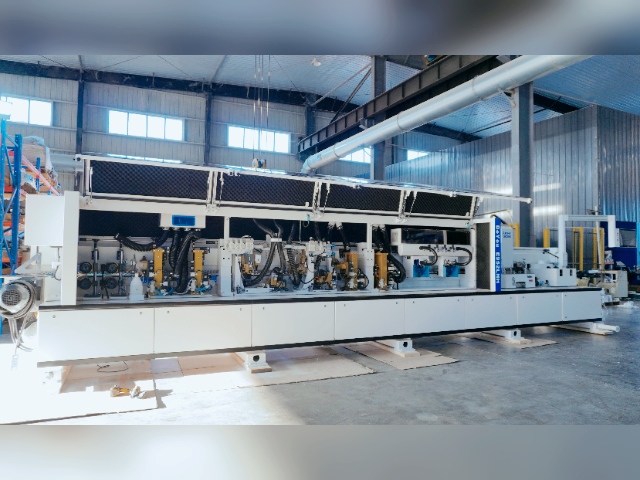

E952LNH Narrow Board Edge Banding Machine With Horizontal Alignment Function
Item No :
E952LNHOrder(MOQ) :
1Product Origin :
Nanjing, Jiangsu Province, ChinaLead Time :
40thWeight :
6000KGE952LNH Narrow Board Edge Banding Machine With Horizontal Alignment Function & Detailed introduction

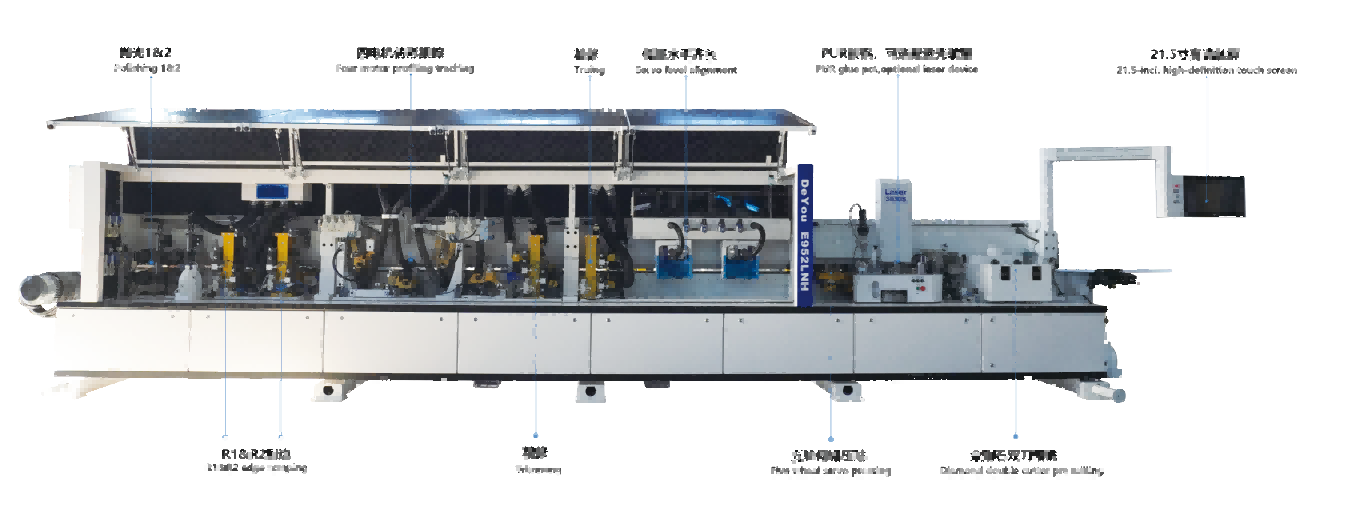

E952LNH Narrow Board Edge Banding Machine Functional Modules:
1. Utilizes anodizing process to enhance the corrosion resistance, wear resistance, and insulation of the metal.
2. Among the first in China to use process-grade linear guides instead of traditional linear bearings + round rails.
3. Equipped with a servo system, achieving both high precision and stability.
4. Horizontal flush head structure, combining process efficiency and performance.
5. High degree of automation, reducing reliance on manual labor and costs.
6. Wide range of applications, accommodating both customized and large-scale production.
7. Steel beams and rails, 15mm wall thickness, high strength, capable of withstanding significant bending and compressive forces.

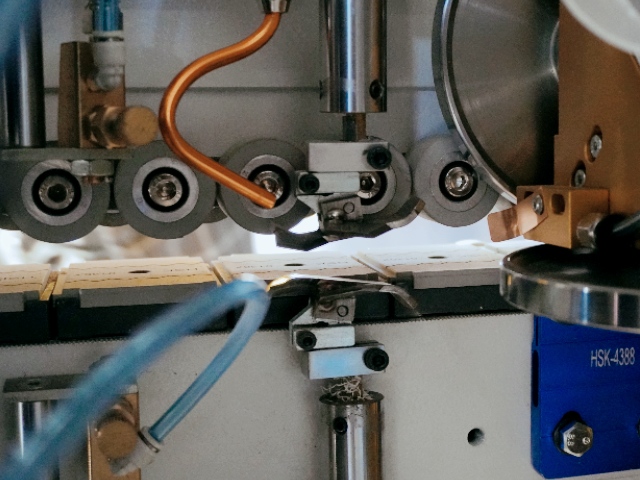

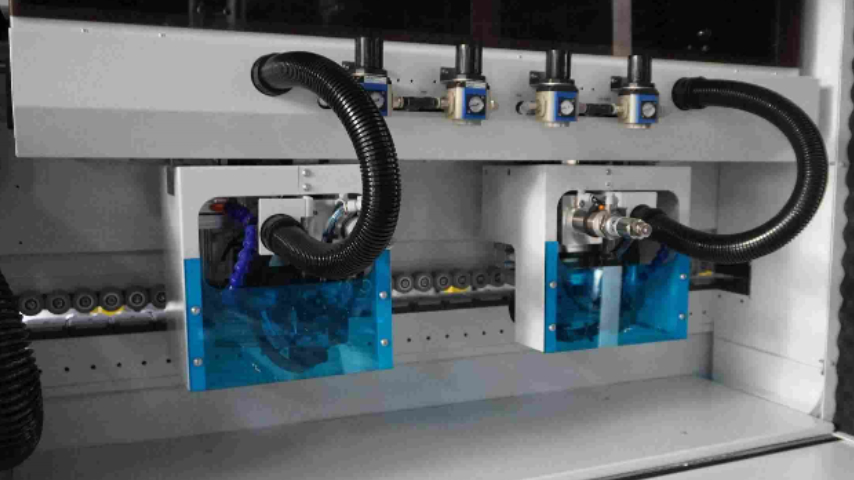

High-speed servo horizontal trimmer:
Primarily responsible for neatly cutting both ends of the edge banding strip, ensuring it is flush with the edge of the board.
The high-precision control of the servo motor enables extremely high cutting accuracy. Its equipped encoder accurately monitors the motor's rotation angle and displacement, thereby precisely controlling the movement of the cutting blade.
The servo motor can precisely adjust the cutting blade's movement speed based on the material and thickness of the edge banding strip, as well as the operating speed of the edge banding machine.
Technical parameter
| feed rate | 18–28 meters per minute (depending on the material of the workpiece being processed) |
| Operating height | 950 mm (for reference only, subject to the actual machine) |
| working air pressure | 7bar |
| External dimensions | 9500cm long * 1100cm wide * 1745cm high |
| Equipment weight | 6000 kg |
| Narrowest workpiece width | 40 mm |
| Workpiece overhang | 19 mm |
| workpiece thickness | 9–45 mm |
| Total power of equipment | 33kw |
detail pictures
The 962P LHD Laser Edge Banding Machine With Horizontal Alignment Function uses a high-energy laser beam to instantly melt the special functional layer material on the edge banding tape, forming a strong mechanical bond with the board material, achieving a near-seamless edge banding effect. Compared to traditional edge banding techniques that use glue, this technology offers comprehensive advantages in terms of aesthetics, durability, efficiency, and environmental friendliness.
Details
The 962LHD Laser Edge Banding Machine uses a high-energy laser beam to instantly melt the special functional layer material on the edge banding tape, forming a strong mechanical bond with the board material, achieving a near-seamless edge banding effect. Compared to traditional edge banding techniques that use glue, this technology offers comprehensive advantages in terms of aesthetics, durability, efficiency, and environmental friendliness.
Details

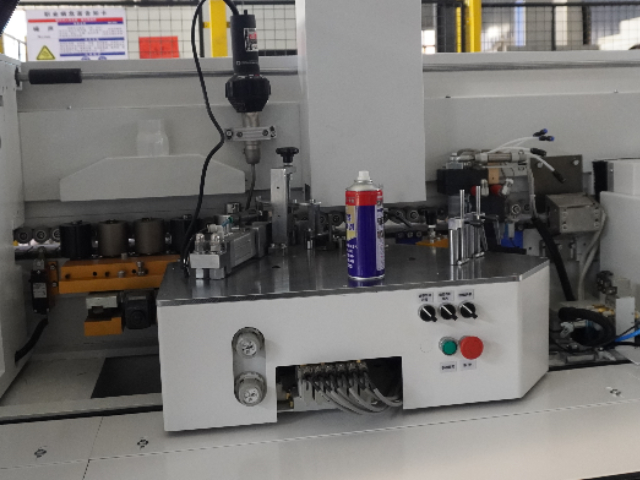

The E952LNH Narrow Board Edge Banding Machine With Horizontal Alignment Function removes excess edge banding material, ensuring a perfect fit between the edge banding tape and the board surface, without any protrusions or depressions. This horizontal alignment creates a clean, sharp right-angle joint, forming the basis for subsequent finishing and chamfering processes. Preparing for downstream processing: Ensuring the front end of the board is neat is crucial for a perfect connection with the back end. This is especially important in machines requiring edge scraping or contour tracking; precise alignment is the benchmark for subsequent processes.
Details
The E952LN Narrow Board Edge Banding Machine can process the following materials: particleboard, medium-density fiberboard, plywood, multi-layer solid wood board, solid wood board, and other boards (such as fireproof board, engineered wood veneer board, etc.). As long as the edges are straight and flat, they can be processed with the straight edge banding machine.
Details
